Press-Fit Pipework for Industrial Compressed Air Systems

Compressed air is essential to production across manufacturing, processing and other industrial environments. When the system isn't performing as it should, the impact can extend well beyond the pipework itself.

Choosing the right compressed air piping system means looking at more than the initial material cost. Installation time, joint integrity, air quality, operating conditions and long-term maintenance all influence the overall value of the system.

Europress stainless steel and carbon steel press-fit systems provide a practical alternative to traditional pipe joining methods, using mechanical pressing to create permanent connections without welding or threading at each joint.

For industrial projects with extensive pipe runs, multiple branches and future expansion requirements, that can make a meaningful difference to installation efficiency and ongoing system management.

Why Choose Press-Fit for Industrial Compressed Air?

Industrial compressed air networks can involve hundreds or thousands of metres of pipe, with branches supplying machinery, production equipment and pneumatic tools.

Traditional joining methods can require multiple preparation and assembly steps. Welding also introduces hot-work requirements, while threaded connections involve additional cutting and joining operations.

Press-fit technology simplifies the connection process.

Once the pipe has been correctly prepared and inserted into the fitting, a compatible pressing tool creates the joint in a controlled mechanical operation.

The potential benefits include:

• Faster installation: Mechanical pressing can significantly reduce joint assembly time compared with conventional welding in suitable applications.

• No hot works at the joint: Press-fit connections avoid the need for welding flames and sparks, subject to the site's other work requirements.

• Consistent connections: Correctly selected fittings, seals and pressing equipment help produce repeatable joints when installed in accordance with the manufacturer's instructions.

• Straightforward branch connections: Press-fit tees and other fittings allow branches to be incorporated without drilling additional holes into the pipe.

• Simpler project planning: A modular system can help contractors coordinate pipe runs, branches and equipment connections.

For projects where labour, access and installation schedules matter, reducing the time required to assemble each joint can improve the overall installation process.

Choosing the Right Pipe Material

Material selection is a critical part of compressed air system design. The best option depends on the operating environment, air quality requirements, budget and intended service life.

Europress offers steel press-fit options, including stainless steel and carbon steel, for suitable compressed air applications.

Stainless Steel Press-Fit Systems

Stainless steel is worth considering where corrosion resistance and durability are important.

AISI 304 stainless steel is commonly used for suitable industrial and compressed air applications. AISI 316L stainless steel offers additional corrosion resistance in environments where moisture, saline aerosols or certain chemicals may be present.

Stainless steel can be particularly useful in manufacturing and processing facilities where the operating environment places greater demands on the pipework.

The correct grade should always be selected according to the site's environmental conditions, air quality requirements and applicable system specifications.

Carbon Steel Press-Fit Systems

Carbon steel can be a cost-effective option for suitable compressed air networks where stainless steel's additional corrosion resistance isn't required.

It provides a robust steel piping solution, but environmental conditions must be considered carefully. Moisture, condensation and corrosive atmospheres can affect the long-term performance of carbon steel pipework.

Where condensation or corrosion risks are present, drainage, system design, inspection and maintenance all play an important role in protecting the installation.

The right choice isn't simply stainless steel versus carbon steel. It's selecting a material that suits the application without overlooking the conditions the system will operate under.

Don't Overlook Pipe Preparation

A reliable compressed air system starts with correct installation.

Cutting and preparing pipe may seem like routine tasks, but poor preparation can introduce problems that affect downstream equipment and maintenance.

After cutting, pipe ends must be properly deburred and prepared in accordance with the manufacturer's instructions. Loose metal particles and sharp edges should not be left inside the system.

Compressed air moves particles through the network, potentially carrying debris towards filters, valves, pneumatic tools and sensitive machinery.

In the wrong circumstances, contamination can contribute to equipment damage, blockages or product quality issues.

Good installation practice includes:

• Cutting pipe to the required length.

• Removing internal and external burrs.

• Checking pipe ends for damage and contamination.

• Confirming the pipe is correctly inserted into the fitting.

• Using the specified pressing tool and compatible jaw or chain profile.

• Inspecting completed joints and carrying out the required system tests.

These steps are fundamental to the installation process, regardless of the pipe material selected.

Consider Oil in the Compressed Air

Not all compressed air systems operate under the same conditions.

Depending on the compressor type and treatment equipment, oil may be present in the air stream. The quantity and type of oil need to be considered when selecting the seals used in the piping system.

Europress offers application-specific O-ring options. For the relevant compressed air configurations, EPDM is used for suitable oil-free applications, while FPM/FKM seals may be required where oil is present at specified concentrations.

For example, the original Europress technical guidance identifies FPM/FKM O-rings for applicable compressed air systems where oil concentrations reach or exceed 5 mg/m³. The correct seal must be confirmed against the current technical documentation for the exact fitting and operating conditions.

Seal selection should account for more than the presence of oil alone. Temperature, pressure, the type of oil and other contaminants can all affect material compatibility.

Before specifying a system, check the compressor's air quality data and confirm that the selected seals are suitable for the intended service.

Managing Condensation, Moisture and Contamination

Compressed air systems can experience condensation as air cools and operating conditions change. If moisture isn't managed properly, it can contribute to corrosion, interfere with equipment operation and affect production processes.

Air treatment is therefore an important part of the overall system design.

Depending on the application, the compressed air network may require:

• Air dryers to control moisture.

• Filters to remove particles and other contaminants.

• Appropriate condensate separation and drainage.

• Correctly designed pipe runs and distribution points.

• Regular inspection and maintenance.

The piping system and the air treatment equipment need to work together. Choosing a durable pipe material doesn't remove the need to control moisture or maintain the system.

For installations in coastal locations, high-humidity environments or areas exposed to aggressive chemicals, material selection and ongoing inspection deserve particular attention.

Plan for Branches, Equipment and Future Expansion

Compressed air networks rarely consist of one straight pipe run. They typically include branches, changes in direction, isolation points and connections to production equipment.

The connection method can influence how easily these elements are incorporated during installation.

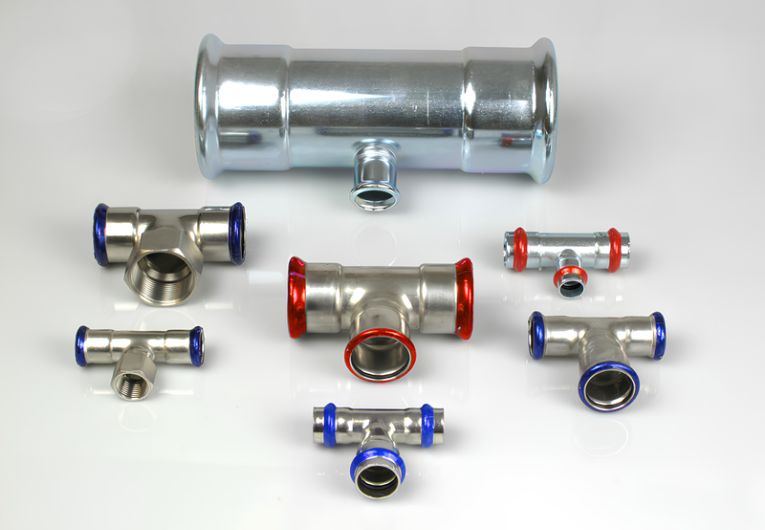

Press-fit tees and other fittings allow branches to be assembled using the appropriate pressing equipment, without the additional drilling operation that some other connection methods require.

This can simplify the assembly of complex pipe layouts and help reduce the potential for drilling debris to enter the network.

Planning also needs to consider pipe sizing, expected demand, pressure losses, equipment connections and the possibility of future expansion.

A system that is easy to assemble still needs to be properly designed. Pipe diameter, routing, support spacing, pressure requirements and air quality should all be considered before installation begins.

What About Maintenance and Long-Term Performance?

The initial installation cost is only one part of the total cost of a compressed air network.

Maintenance requirements, corrosion, changes to production layouts and access to components can all influence the system's performance over time.

A correctly specified steel press-fit system provides permanent mechanical connections. Unlike some reusable push-fit systems, a pressed steel fitting generally cannot be removed and reused simply by releasing the connection. Modifications may require cutting out the affected section and installing replacement components.

This is worth considering when planning future changes to the network.

Routine inspections should also take account of the operating environment, visible signs of corrosion, pipe supports, vibration, condensation management and the condition of connected equipment.

No pipework system eliminates the need for inspection and maintenance. Good design and installation practices help establish the foundation for reliable operation.

Is Press-Fit the Right Choice for Your Compressed Air System?

Press-fit is worth evaluating for industrial compressed air projects where installation efficiency, durable steel connections and a structured installation process are priorities.

It can be particularly useful for larger networks with multiple branches, extensive pipe runs or demanding installation schedules.

Before making a decision, consider:

• Required operating pressure and temperature.

• Pipe material and corrosion exposure.

• Compressed air quality and potential oil contamination.

• Pipe diameter and system layout.

• Installation access and site safety requirements.

• Applicable approvals and technical specifications.

• Inspection, maintenance and future modification requirements.

The selected pipes, fittings, seals and pressing tools must be compatible with one another and approved or suitable for the intended application.

Europress Press-Fit Systems for Industrial Compressed Air

Europress steel press-fit systems are designed to make pipework assembly more straightforward while providing durable connections for suitable industrial applications.

With stainless steel and carbon steel options, a range of fitting configurations and mechanical pressing technology, the system can be considered for new compressed air networks, extensions and system upgrades.

The key is to specify the right configuration for the job and follow the relevant technical instructions throughout installation and testing.

Planning an industrial compressed air system? Explore the Europress press-fit range and technical documentation to identify the appropriate pipework components for your application.
